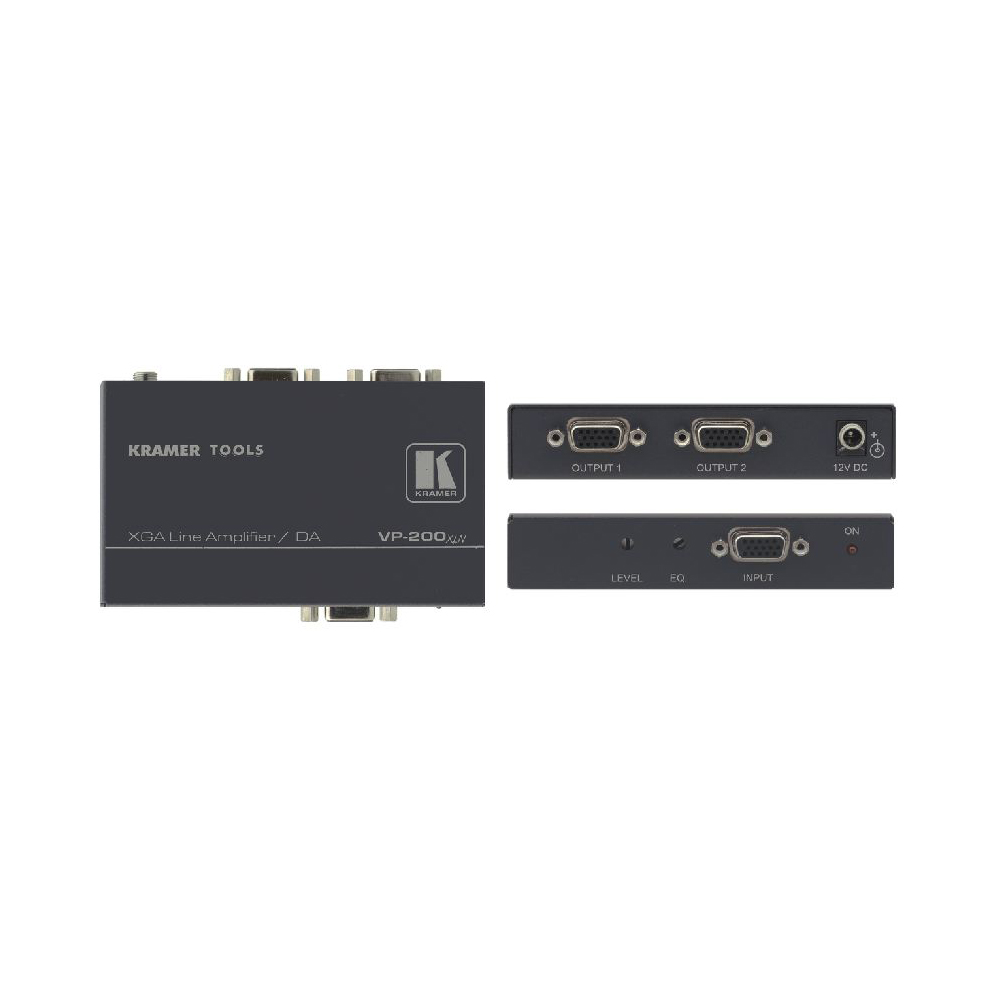

The Kramer for computer graphic signals offers a resolution up to or higher than UXGA (Ultra eXtended Graphics Array). The amplifier is ideal for dual monitor systems, stores, POS, and presentation systems.
The amplifier distributes 1 input with correct buffering and isolation to 2 identical outputs on high-density 15-pin HD connectors. With video bandwidth greater than 400MHz, the amplifier remains transparent even at high-resolution graphic modes such as UXGA (1600 x 1200) and supports DDC (Display Data Channel) communication between the input and output 1 high-density 15-pin HD connectors.
When a PC or laptop is connected to a display device through VGA, the EDID (Extended Display Identification Data) enables recognition of the monitor type and includes manufacturer’s name, product type, timing data supported by the display, display size, luminance data, and (for digital displays only) the pixel mapping data. The distribution amplifier reads the EDID of the acceptor connected to the output and then passes the data to the graphics source.
The Kramer’s Kr-isp Advanced Sync Processing technology restores the sync signal waveform, resulting in sharp and stable images even at low sync levels; this makes the unit compatible with most computers. The amplifier also includes ID bit control switch, polarity switch, and 3 ft 15-pin HD cable, and also supports DC coupling and has s/n ratio of 72dB at 5MHz.
The distribution amplifier includes a VS (Vertical Sync) and HS (horizontal Sync) switch that are operated depending on the source; for example, both switches can be set to Hi-Z (TTL4) if the source is a digital graphics card or to 75 ohms (analog) for an analog source.
Input 1 UXGA on an 15-pin HD connector
Output 2 UXGA on 15-pin HD connectors
Video Bandwidth 400MHz
Video Signal-to-Noise Ratio 72dB @5MHz
Differential Phase 0.03 Deg
Differential Gain 0.03%
Video Control Internal ID BIT switch; internal analog/TTL switches for setting the sync
Power Source 5VDC, 130mA
Dimensions 4.8 x 1 x 2.8″ (12.1 x 2.4 x 7.2cm)
Weight 0.7 lbs (0.3kg)
